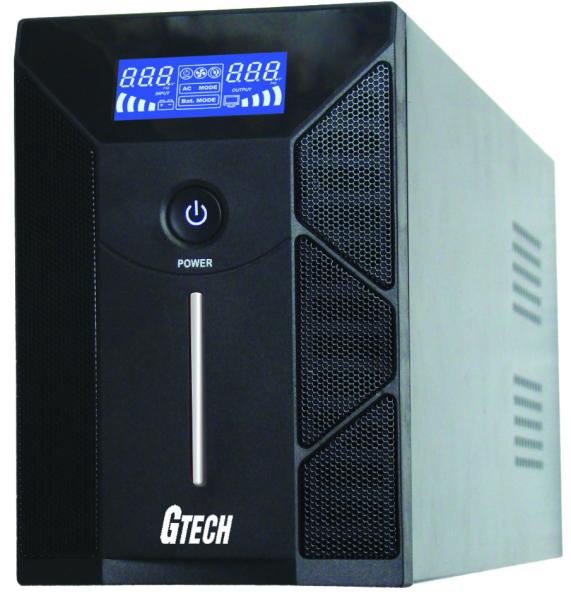

0.7 Power Factor Sine Wave Ups , 1KVA~5KVA Line Interactive Ups Tower Type

  • 1
  • 2
  • 3

Brand Name : G-Tech

Model Number : SL

Certification : CE,Rohs,ISO

Place of Origin : China

MOQ : 500pcs

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 200000pcs/Month

Delivery Time : 25 days

Packaging Details : Carton

Application : Power backup for Computer,Laptop...

Mount Way : Tower Type

Protection : Overvoltage

Type : Line Interactive

Output wave form : Sine wave

Contact Now

SL Series 1KVA~5KVA Line-interactive UPS Pure Sine Wave Tower Type

  • SL series UPS applies CPU intergrated control technology with pure sine wave output. Its input voltage range is wide and its
  • transfer speed is fast. It possesses automatic voltage regulation function and different charging current is optional. Long backup
  • time models are available, which can be connected to external batteries as per user's actual need, so back up time will be unlimited.

Field of application

Applicable to household PC, office euquipment in enterprise and institution, small communication switchborad and server, LAN device,

commerical POS machines, small workstation and its peripheral equipment, banking terminal, ATM system and so on.

  • Line-interactive UPS
  • LCD or LED display optional
  • 145-275V AC input
  • 200-240V AC output
  • Product description: 1KVA~5KVA Line-interactive Pure Sine Wave No Break Power Systems OEM/ODM Supply

  • Feature

    2 CPU Controlled

    Pure Sine Wave output

    Compatible with generator

    Automatically transferred to Batt.Mode when input over/low voltage

    Connect to external battery for long power supply

    RJ11/45, RS232/USB (Optional)

  • 0.7 Power Factor Sine Wave Ups , 1KVA~5KVA Line Interactive Ups Tower Type

Specifications

Model

1KL

1.5KL

2KL

3KL

5KL
Capacity 1000VA/700W 1500VA/1050W 2000VA/1400W 3000VA/2100W 5000VA/3500W

Display

 LCD/LED(Optional)

AC Mode

Input

Voltage

145-275VAC

Frequency

45-65Hz

Output voltage

200-240VAC

Inverter Mode

Output voltage

220V±5%

Output Frequency

50±0.5Hz

Power Factor

0.7

Output wave form

Pure Sine Wave

Transfer Time

Typical 2-6ms, 10ms Max

Overload capacity

if 110%, then shut down within 60sec; if 120%, then shut down within 5 sec.

Battery

Sealed maintenance-free lead-acid batteries

DC Voltage

 24VA 48VA 48VA

Qty & capacity of Battery

12V/7A*2

12V/9A*2

 12V/7A*4 12V/9A*4 External Battery
Physical
Net Weight(kg) 23.8 25.6 30.2 34.5 41.5
Dimension(mm) 405*145*220 455*195*330
USB&RS232 Optional

0.7 Power Factor Sine Wave Ups , 1KVA~5KVA Line Interactive Ups Tower Type

Founded In the early 2005, as an UPS/Inverter/VRLA Battery Manufacturer on the market, G-Tech has worked closely with his customers and helped them boost their business for more than 14 years.

Now, we are looking forward to exploring and discovering more opportunities with our customers, and move on to the next 30 years of successful business.
